Model

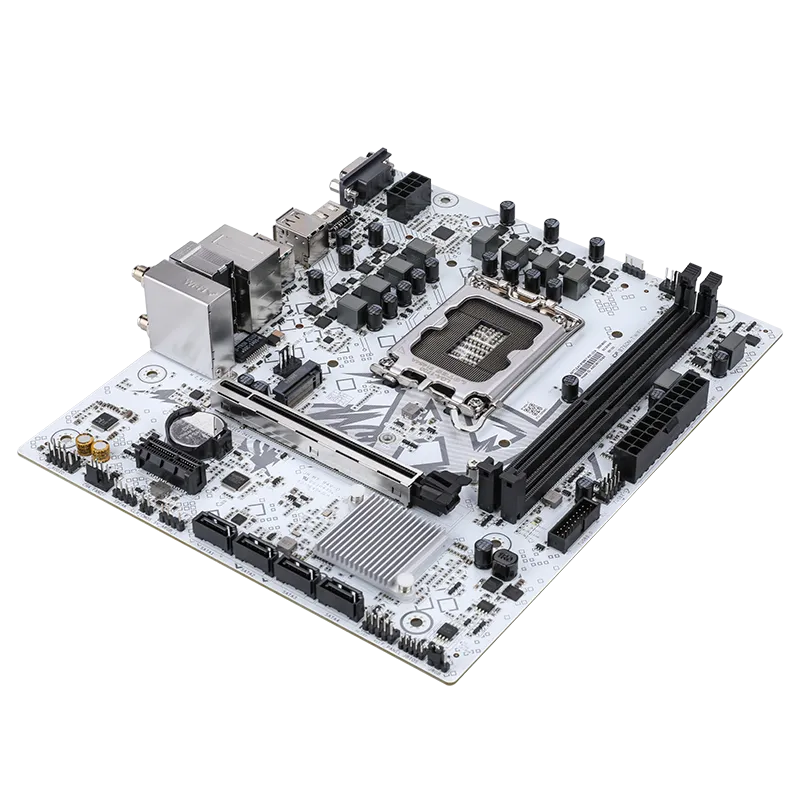

BATTLE-AX B760M-T WIFI V21A

Product Series

BATTLE-AX series

Chipset

Intel B760

Processor

Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® processor

(*Please visit the Colorful official website www.colorful.cn for the latest processor support list)

Memory

2 DDR4 memory slots, supporting up to 64 GB memory (single slot supports up to 32 GB)

- Supports DDR4-4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3200/3000/2933/2800/2666/2400/2133MHz memory

- Supports Intel® Extreme Memory Profile (XMP) memory technology

- Supports dual-channel memory technology

(*Please visit Colorful's official website www.colorful.cn for the latest memory compatibility list)

SATA Ports

1 M.2 slot and 4 SATA 6Gb/s hard disk interfaces, supports creating RAID 0, RAID 1, RAID 5, RAID 10 disk arrays with SATA hard disk devices

- M.2_1 slot: supports 2242/2280 specification M.2 SSD (PCIe 4.0 x4, CPU channel)

Board I/O

Rear I/O :

-2×USB 2.0 interfaces

-4×USB 3.2 Gen 1 Type-A interfaces

-1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution

-1×VGA interface

-1×Gigabit network interface

-2×Wi-Fi 6 antenna interfaces

-3×Audio interfaces (audio input/audio output/microphone)

On board:

-1×CPU fan pin

-2×System fan pins

-1×USB 2.0 pin can be expanded to 2 USB 2.0 Type-A interfaces

-1×USB 3.2 Gen 1 pin can be expanded to 2 USB 3.2 Gen 1 Type-A interfaces

-2×5V 3-pin ARGB pins

-1×Front audio pin

-1×Front panel pin

-1×Speaker pin

-1×Clear CMOS jumper

-1×BIOS burner pin

-1×Lighting control jumper

Expansion Slots

1 PCIe 5.0 x16 slot

1 PCIe 4.0 x1 slot

BIOS

128M UEFI, support multiple languages

Power Management

Support S3, S4, network S5 wake-up, support scheduled startup, call startup

Hardware Monitor

CPU fan speed controllable, system fan speed controllable, CPU temperature monitoring, System temperature monitoring, and each group voltage monitoring

LAN

RTL8111H/RTL8111M Gigabit LAN, AX101 WiFi 6 wireless LAN, Bluetooth 5.2

Audio

Realtek ALC897 high-fidelity decoding chip, supports 5.1 channels

Configuration

M-ATX

225mm x 190mm
